Closed Cooling Water System: Guide to Efficiency, Protection, and Longevity
Table of Contents
What is a Closed Cooling Water System?
A closed cooling water system is a fully sealed recirculating loop designed to transfer heat without exposing the cooling medium to the atmosphere. This differs from open-loop systems—such as cooling towers—where water is in direct contact with air, leading to evaporation, contamination, and higher water usage.
In a closed loop, heat is picked up from process equipment or HVAC components and transferred to a heat exchanger. The cooled fluid then re-enters the loop to repeat the cycle. Because the loop is sealed, water loss is minimal, oxygen ingress is reduced, and chemistry control is far more stable. This results in lower scaling risk, reduced corrosion potential, and longer system life.
How a Closed Cooling Water System Works

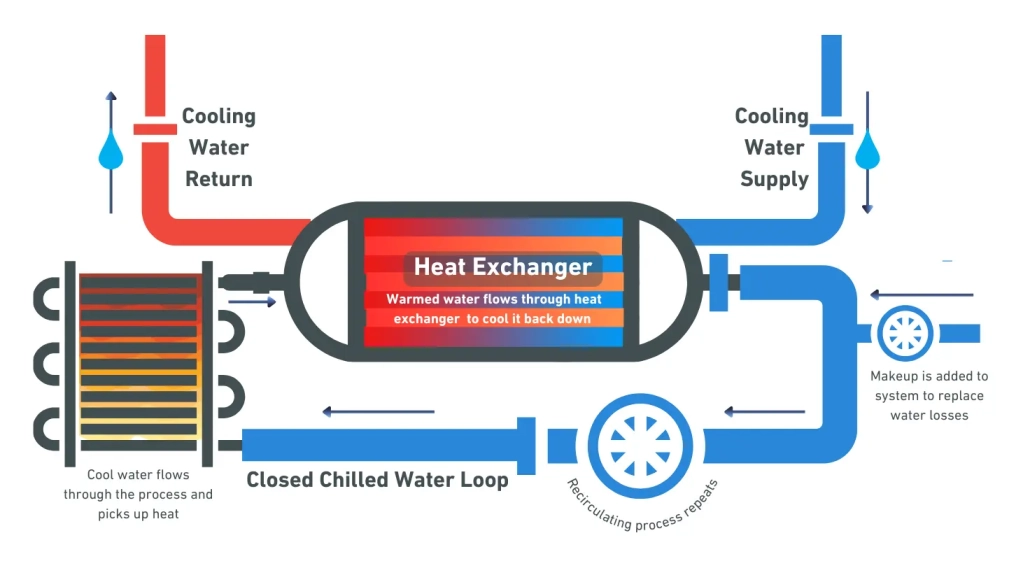

Diagram of an industrial closed loop cooling system showing a closed chilled water loop circulating through a heat exchanger. Labeled cooling water supply, return, makeup water, and process equipment are included, with arrows indicating flow directions.
While the concept is straightforward, the engineering behind closed cooling loops is carefully optimized to ensure maximum thermal efficiency and equipment protection.
-
Cool water enters the process or HVAC equipment – absorbing heat from chillers, compressors, or manufacturing machinery.
-
Heated water exits the equipment – carrying the absorbed heat to a heat exchanger.
-
Cooling stage occurs – the heat exchanger removes the excess thermal energy, using either a dry cooler, air-cooled chiller, or indirectly via an open cooling tower.
-
Recirculation repeats – ensuring precise temperature control and continuous system stability.
In high-reliability applications—such as data centers or mission-critical government facilities—a secondary chilled water loop may connect to a plate-and-frame or shell-and-tube heat exchanger, allowing tighter temperature tolerances and redundancy.
Where Closed Cooling Water Systems Are Used
Closed cooling loops are the preferred choice whenever operational uptime, corrosion control, and water conservation are top priorities. Common applications include:
-
Healthcare facilities – Protecting MRI chillers, sterilization equipment, and HVAC systems.
-
Data centers – Supporting high-density server cooling, including direct-to-chip liquid cooling technologies.
-
Food & beverage manufacturing – Maintaining strict temperature control to ensure product consistency and compliance.
-
Government & defense installations – Enabling mission-critical operations where downtime is unacceptable.
-
Industrial manufacturing – Preventing thermal damage to process machinery, injection molds, and compressors.
Common Challenges in Closed Cooling Water Systems
Although these systems are sealed, “closed” doesn’t mean “maintenance-free.” Without proper monitoring and treatment, several problems can develop:
-
Corrosion – Even minor oxygen ingress can cause pitting, galvanic, or under-deposit corrosion, especially with improper pH control.
-
Deposits – Formed from suspended solids, corrosion byproducts, or scale-forming minerals.
-
Microbiological fouling – Biofilms reduce heat transfer efficiency and can accelerate metal degradation.
-
Erosion – Caused by abrasive particles circulating in inadequately filtered water.
These issues increase pumping energy, shorten heat exchanger lifespan, and reduce overall efficiency—making proactive water treatment and monitoring essential.
Chemical Treatment Strategies
The chemical program for a closed cooling water system must be tailored to system materials, operating temperatures, and environmental conditions. Key treatment approaches include:
Corrosion Control
-
Nitrites – Effective for carbon steel in low-temperature loops.
-
Molybdate – Favored for mixed-metal systems.
-
Silicates – Form a passivation layer on steel surfaces.
-
Filming amines – Provide a hydrophobic barrier to oxygen and moisture.
-
Azoles (e.g., tolyltriazole) – Protect copper and copper alloys.
-
pH control – Maintaining ideal ranges prevents acid attack or alkaline scaling.
Deposit and Fouling Control
-
Polymers – Disperse particulates and prevent scale crystal growth.
-
Biocides – Oxidizing and non-oxidizing formulations to suppress bacteria and algae.
A balanced program prevents corrosion and fouling without overdosing, which can cause foaming or material compatibility issues.
Role of Filtration in Performance and Protection
Filtration is often underestimated in closed-loop performance—but it’s a critical safeguard against long-term degradation.
Benefits of continuous side-stream or full-flow filtration include:
-
Preventing under-deposit corrosion.
-
Reducing erosion caused by suspended solids.
-
Enhancing chemical treatment performance by removing interference particles.
-
Eliminating biofilm “anchor points.”
Best practice: Integrate fine filtration with automatic purging to reduce maintenance burden.
Best Practices for Maintenance and Monitoring
For consistent efficiency and long service life, adopt a structured maintenance program:
-
Routine water analysis – Track inhibitor levels, pH, conductivity, and microbial counts.
-
Leak detection – Small leaks can introduce oxygen and contaminants.
-
Filter upkeep – Clean strainers and replace filter elements regularly.
-
Periodic flushing – Remove sludge and accumulated debris.
-
Trend logging – Monitoring key data points over time ensures early detection of abnormal changes.
Final Thoughts
A closed cooling water system offers unmatched efficiency, water savings, and protection for mission-critical equipment—but only when backed by robust chemical treatment, reliable filtration, and proactive monitoring.
When maintained correctly, these systems deliver decades of dependable operation, safeguarding both capital investments and operational uptime.
