How do Adiabatic Cooling Systems Work?

In terms of raw energy efficiency and the ability to provide precise cooling under fluctuating load conditions, recirculating evaporative cooling water systems with chillers or heat pumps remain the most efficient way to remove heat from a process or building air. However, adiabatic cooling systems can be a cost-effective alternative for heat removal in certain climates and applications.

Adiabatic cooling has been widely adopted in industries such as data centers, food and beverage processing, manufacturing, and mission-critical facilities where energy and water efficiency are top priorities. This article explores the working principles of adiabatic cooling, system configurations, best-fit applications, and water treatment considerations.

What Are Adiabatic Cooling Systems?

Adiabatic cooling systems remove heat by evaporating water into a stream of warm, dry (low-humidity) air. As the water transitions from liquid to gas, it absorbs heat from the air, simultaneously cooling and humidifying it. The temperature of the air stream is lowered to within a few degrees of the wet bulb temperature, improving cooling efficiency.

Types of Adiabatic Cooling Systems

Adiabatic cooling systems come in various configurations, but they generally fall into one of the following three categories:

1. Direct Evaporative Coolers (Swamp Coolers)

These systems blow warm, dry air through a water spray or a water-soaked media pad.
As the air passes through the spray or wetted pad, the evaporated water cools and humidifies the air stream.
This process is known as Direct Adiabatic Cooling and is commonly used in dry climates.
Legionella Risk: Since direct evaporative coolers continuously expose water to air, they create an environment that can support Legionella growth. Proper water treatment and regular maintenance are crucial.

2. Indirect Evaporative Coolers

Similar to direct evaporative coolers, but with a key difference: the cooled air stream is separated from the outside air by a heat exchanger.
This setup prevents humidity from increasing in the cooled air, making it ideal for applications requiring dry cooling.
This process is known as Indirect Adiabatic Cooling and is used in systems where moisture control is essential.
Legionella Risk: Lower than direct evaporative coolers because the cooling air and process air do not mix, reducing the likelihood of airborne water droplets carrying bacteria.

Indirect Adiabatic Cooling System Illustration

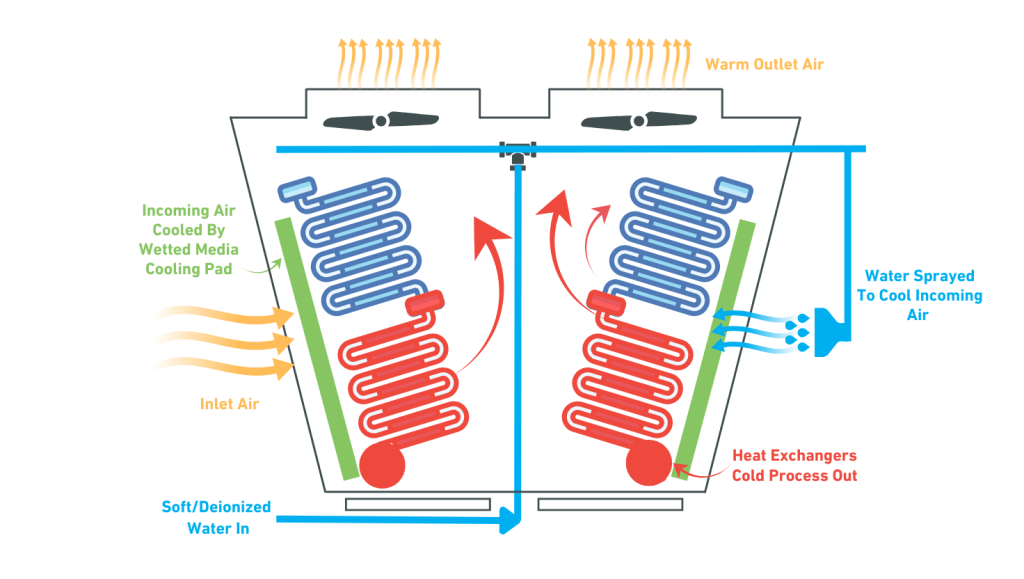

3. Adiabatic Cooling Towers

These are air-cooled fluid coolers or refrigerant condensers that employ adiabatic cooling when the outside air temperature becomes too high for efficient heat removal.
In cooler weather, they operate as standard dry coolers, using only air to dissipate heat.
During hot conditions, they switch to adiabatic mode, introducing water into the inlet air stream to lower its temperature before it passes over the heat exchanger.
Unlike traditional recirculating cooling towers, adiabatic cooling towers only use water when needed, potentially reducing annual water consumption by up to 80%.
Legionella Risk: Lower than direct evaporative coolers, but water misting can still produce aerosols. Proper water treatment and Legionella prevention strategies should be implemented.

Where Are Adiabatic Cooling Systems a Good Fit?

Adiabatic cooling systems are best suited for:

1. Hot, Dry Climates

Ideal for regions where air humidity is low, allowing for maximum evaporative cooling efficiency.
Particularly effective in desert and arid environments where water conservation is a priority.

2. Applications with Seasonal Cooling Needs

Facilities that require cooling only during peak summer months can benefit from adiabatic systems.
The ability to switch between dry and adiabatic cooling makes these systems more efficient than evaporative cooling towers in certain climates.

3. Industries with Water-Sensitive Operations

Data Centers: Adiabatic cooling technology has been widely used in air-side cooling for data centers. The increasing scarcity of water has made liquid-side adiabatic cooling an attractive option for heat rejection.
Manufacturing: Adiabatic cooling is useful in industrial settings where water availability and cost constraints impact operations.
Cold Storage & Food Processing: The ability to precisely control temperatures while using minimal water makes adiabatic cooling ideal for refrigeration and processing environments.

Adiabatic cooling systems provide a flexible, water-efficient alternative to traditional cooling towers and air-cooled heat exchangers. By combining dry cooling with on-demand evaporative cooling, these systems reduce water consumption, improve energy efficiency, and optimize heat rejection in variable conditions.

Facility managers and engineers considering adiabatic cooling should evaluate climate suitability, water quality requirements, and system design to ensure the best performance. With proper maintenance and water treatment, adiabatic cooling systems can provide reliable, cost-effective cooling while minimizing environmental impact.
