The Need for New Construction Flushing

Every new piping system leaves the fabrication yard with mill scale, oxides, and residual oils. Welding slag, cutting lubricants, and even simple dirt enter during installation. Once water is introduced, these contaminants react, forming:

• Iron hydroxides and oxides (Fe(OH)₂, Fe₂O₃, Fe₃O₄)

• Galvanic couples between dissimilar metals (copper, steel, stainless)

• Deposits that restrict laminar-to-turbulent flow transitions

If left untreated, the system quickly develops fouling layers that act as thermal insulation. In chilled water loops, even 0.25 mm of iron oxide film can reduce heat transfer efficiency by 10% or more, raising chiller kW/ton.

That’s why flushing is more than “turning on the pumps.” It’s a chemically assisted, hydraulically engineered cleaning process.

---

Why Hydraulic Velocity and Flow Design Matter

One of the most overlooked aspects of new construction flushing is hydraulic velocity.

• For proper cleaning, velocities must exceed 5–6 ft/sec to achieve turbulent flow (Reynolds number > 4,000 in most pipe sizes).

• Turbulence creates scouring action that physically removes debris and scale.

• Low velocities (<3 ft/sec) risk laminar flow, leaving weld slag and mill scale undisturbed.

Chemstar Water engineers design flushing loops to maximize flow through critical sections. We deploy temporary high-volume pumps and filtration skids to achieve these velocities even in very large bore piping (often 24”+ in data centers).

Key takeaway: hydraulic design is as critical as chemical selection.

---

Cleaner Chemistry: Breaking Down Oils, Scale, and Debris

Chemstar WATER uses tailored cleaners depending on system metallurgy and contamination type. Typical formulations include:

• Alkaline cleaners with surfactants – emulsify cutting oils and grease films.

• Chelating agents (EDTA, gluconates, proprietary blends) – bind iron and hold it in soluble form, preventing re-deposition.

• Dispersants – keep particulate fines suspended for removal by filtration.

• Passivators – sometimes applied post-cleaning to establish a protective oxide layer on carbon steel.

Unlike aggressive mineral acids, our blends are designed to:

• Avoid undercutting welds or attacking copper/brass.

• Minimize disposal costs by producing non-hazardous rinse water.

• Support fast neutralization before turnover to permanent water treatment.

The chemistry is critical because without dispersants and chelants, removed iron simply re-settles downstream, causing strainers to clog and pumps to cavitate.

---

The Role of VPCI in Long-Term Corrosion Protection

Traditional inhibitors protect only in the liquid phase. But construction schedules often mean piping and chillers sit idle, partially drained, or exposed to humid air for weeks or months.

This is where VPCI (Vapor Phase Corrosion Inhibitors) make the difference.

Mechanism of Action:

• VPCI molecules vaporize into the system headspace.

• They migrate and adsorb onto exposed metal surfaces, even those not in direct water contact.

• The polar nature of the molecules creates a monomolecular film that interrupts the electrochemical corrosion cell.

Advantages over conventional inhibitors:

• Full coverage in both vapor and liquid phases.

• Protection of complex geometries, headers, and high points that may not be fully flooded.

• Prevention of flash rusting during initial fill/startup.

• Months of protection without circulation.

For mechanical contractors, this means pipes and chillers can be staged on-site long before commissioning without risk of internal corrosion.

---

Iron Control: Preventing Fouling in the Chilled Water Loop

One of the most common issues during early operation is iron fouling. If construction debris or corrosion byproducts are not controlled:

• Iron hydroxides settle in low-velocity zones, creating dead legs and under-deposit corrosion.

• Strainers clog during startup, forcing repeated shutdowns.

• Fine particulates erode pump impellers and damage mechanical seals.

Chemstar Water prevents this by:

• Measuring iron ppm during flushes to confirm cleaning effectiveness.

• Using high-capacity filtration skids to capture debris as it’s mobilized.

• Applying chelants that keep iron soluble until safely discharged.

The result is a clean chilled water loop with stable low iron levels (<0.1 ppm) ready for permanent chemical treatment.

---

Chemstar WATER’s Flushing Methodology in Action

A typical large-volume data center flush involves:

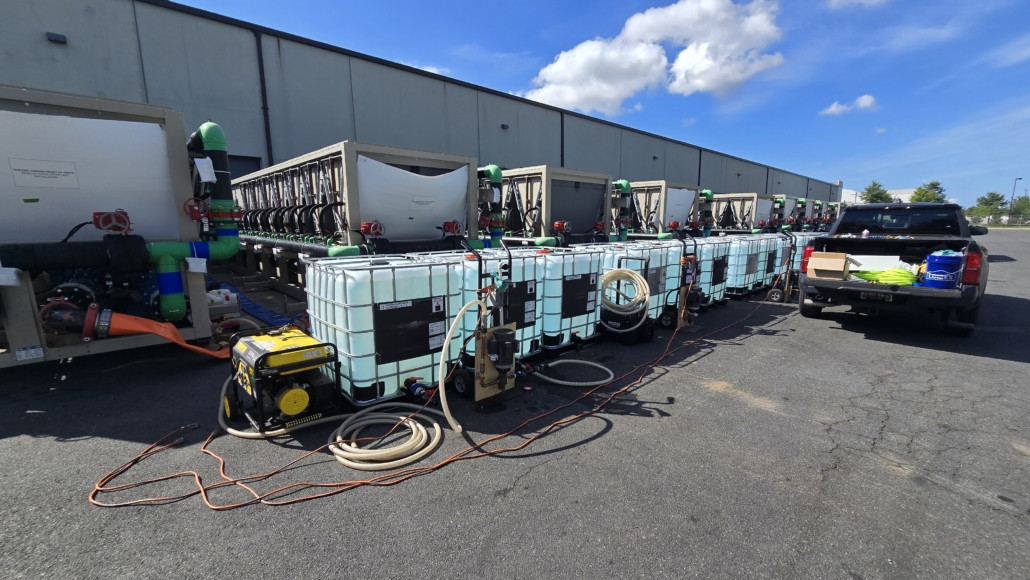

1. Temporary Loop Setup – Installing high-flow pumps, hoses, and filtration skids.

2. Hydraulic Scouring – Running water at velocities 2–3x design flow rates.

3. Chemical Injection – Introducing cleaners tailored to oils, mill scale, and metals present.

4. Filtration & Monitoring – Inline bag filters and real-time iron/conductivity monitoring.

5. Rinse & Neutralization – Ensuring system pH and iron levels meet acceptance criteria.

6. VPCI Application – Fogging or dosing to establish vapor-phase protection.

7. Layup & Handover – System left corrosion-free until permanent fill.

Contractors benefit because this approach meets OEM requirements, avoids warranty disputes, and minimizes risk at turnover.

---

Markets We Serve and Real-World Experience

Chemstar Water has become the go-to partner for new construction flushing in:

• Northern Virginia – the world’s largest data center hub.

• Columbus, OH – fast-growing hyperscale builds.

• Pennsylvania, Maryland, South Virginia – healthcare, higher education, and government projects.

• Now Atlanta, GA – pulled into this market at client request.

In each region, our ability to mobilize quickly, scale equipment capacity, and provide documented proof of cleanliness sets us apart.

---

Customer Perspective

One mechanical contractor recently told us:

“Chemstar Water truly understands what we need. They are the experts in large volume flushing. Their service level and expertise is completely unmatched.”

For contractors, this means peace of mind: fewer callbacks, smoother commissioning, and reliable project turnover.

---

Conclusion: Why Chemstar Water Leads in New Construction Flushing

New construction flushing is not just a box to check—it’s a technical process requiring engineered hydraulics, specialty chemistry, and corrosion science.

Chemstar Water’s program combines:

• Hydraulic expertise to achieve true turbulent flushing.

• Advanced cleaners to remove oils, mill scale, and iron oxides.

• VPCI technology to protect systems during extended construction layup.

• Filtration and monitoring to ensure verifiable cleanliness.

That’s why Chemstar Water has become the leading flushing partner for new construction chillers and piping systemsin data centers and mission-critical facilities across the Mid-Atlantic, Midwest, and Southeast.

If you want fewer risks, cleaner systems, and smoother startups—Chemstar Water delivers.
